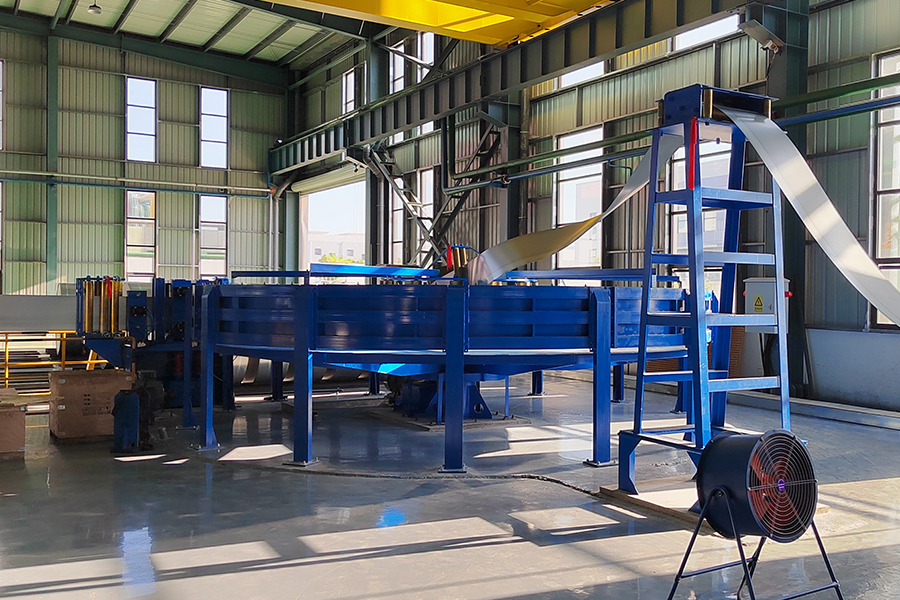

Horizontal Spiral Accumulator

A Horizontal Spiral Accumulator is a type of machine used in metal coil processing lines, like tube mills or roll forming lines, to ensure continuous production. Its main purpose is to store a large amount of steel strip in a compact, horizontal spiral to create a buffer. This allows the downstream part of the line (like the forming and welding sections) to continue running even when the upstream part (like the uncoiler or shear welder) is stopped for a brief period, such as during a coil change or butt welding.

How It Works:

When the production line is running normally, the accumulator's speed is synchronized with the line, and it feeds excess strip into its spiral formation.

When the upstream process needs to stop (for example, to cut and weld the end of an old coil to the beginning of a new one), the accumulator's drive system switches to high-speed output.

The accumulator then unwinds its stored spiral of steel strip, providing a continuous supply to the rest of the production line.

Once the upstream process resumes, the accumulator returns to its synchronized mode, refilling its internal storage for the next stop.

Key Features and Advantages:

Space-efficient: Unlike a vertical accumulator that requires high ceilings, the horizontal spiral design is ideal for factories with limited vertical space, as it stores the material in a wide, flat plane.

Large Storage Capacity: The spiral layout allows for a significant amount of steel strip to be stored in a relatively small footprint.

Smooth Material Handling: The design minimizes resistance and stress on the steel strip, which helps prevent material damage like marks or scratches, preserving the quality of the end product.

Continuous Operation: By acting as a buffer, it completely eliminates downtime caused by coil changes, significantly increasing the overall production efficiency and throughput of the line.
