HG127 Pipe Making machine

The main technical performance and detailed description of the production line

Machine model Production range Wall thickness range Milling speed High-frequency power
HG90 Φ30/48~Φ115 mm δ1.5~4.5 mm 20~60 300KW
□25×25~90×90 □δ≤3.5mm
PREV: No previous article Next: HG76 ERW Tube mill line

1. Workshop requirements

Item Parameter Remarks
Feed direction Left or right entry (depends on the customer's workshop process layout) Facing the equipment, the direction of raw material entry
Total power of equipment

Approximately 770KW(Main machine 320KW+High frequency300KW+Auxiliary machine150KW)
Power supply voltage standard 380V/50Hz; Three-phase four-wire system Low voltage distribution cabinet, cables, customer self-provided
Equipment area covered

L 55-65M×W 4.5M

 According to the equipment layout
The high-frequency welding machine area is covered L 6M×W 3M×H 2.8M
Water supply (recycled)

One cooling pool: 30m³; One set of high-pressure pumps. Alternatively, the supplier can provide the buyer with factory drawings, and based on the drawings, create a waterway layout plan.

 The customer self-provides a water pool, water pump, plumbing system, and cooling tower
Air supply Air compressor: one set 1.6m³for common steel pipe;if Galvanized pipe need 3.5m³ The customer self-provides an air compressor, air storage tank, and pipeline
Lifting equipment Aircrane 5~10Tons: two sets The customer self-provides
Normal consumable parts （1）Scraper knives
（2）Saw blade
（3）Ferrite
（4）Induction coil(Copper tube, insulated tube)


Production process

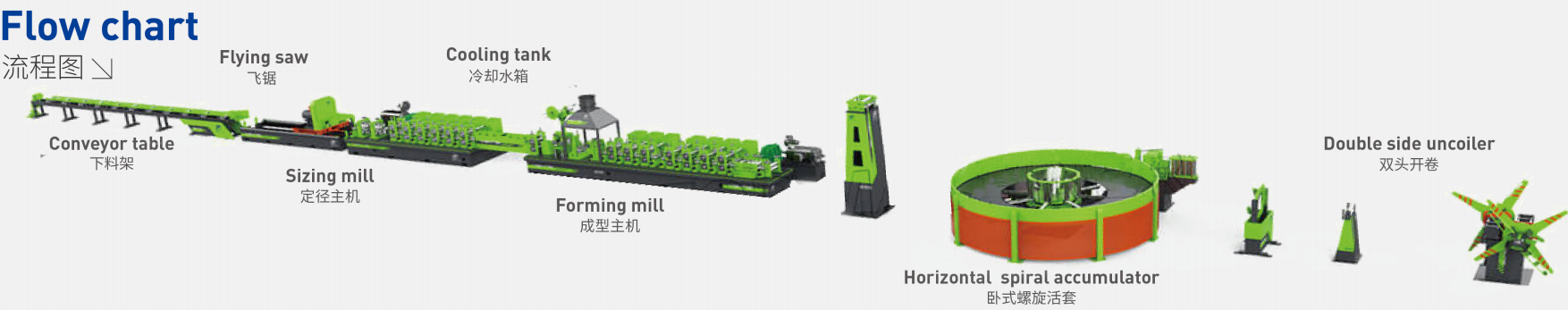

Raw material (steel strip) → uncoiling → shearing and end welding → material accumulating → non-power leveling → mill-forming → high-frequency welding → removing burrs outside of weld seam → cooling → sizing → roughly straightening → fixed length cutting → finishing tube→pack


Technical specification(Pictures only for reference)

1、Single side hydraulic uncoiler
Function The function of this unit is to dismantle the entire coil of steel strip and provide the necessary raw materials for the forming machine
Loading Weight Max. 8.0 Tons/side
cone heads

Single cone head
Conehead structure type combination of sliders, sturdy and stable
Expand type Hydraulic expanding
Cone heads material Spindle: 42CrMo, forging, overall tempering;
Arc plate: 45# overall tempering
Wedge slider: 45# steel tempered
Brake type Pneumatic type
Material blocking device Manual mode

2、Shearing and butt-welder
Function Its function is shearing and aligning the head and the end of two different strips, cutting off irregular parts, and welding two strips together so that the line can work continuously
 Shearing type

Hydraulic shearing, material: Cr12MoV
Clamping type

Hydraulic clamping
Welding type TIG automatic welding

3. Horizontal accumulator
Function It is used for accumulating enough steel strips to ensure the machine runs continuously
Outside size O.D. 5.0m
Feeding motor 18.5 KW (AC motor with variable frequency speed regulation)
Storage motor 22 KW (AC motor with variable frequency speed regulation)
Feeding speed MAX200m/min

Storage capacity

500～1000m

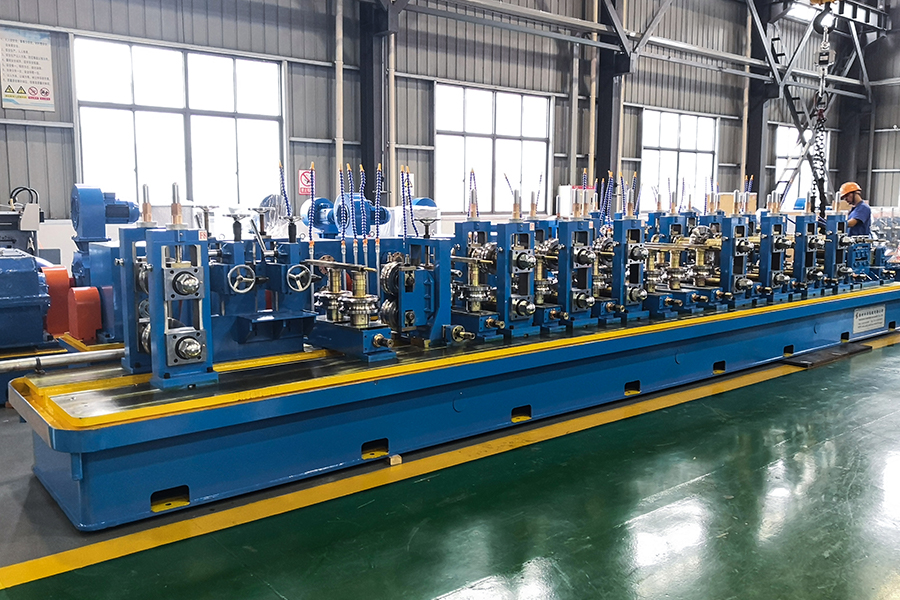

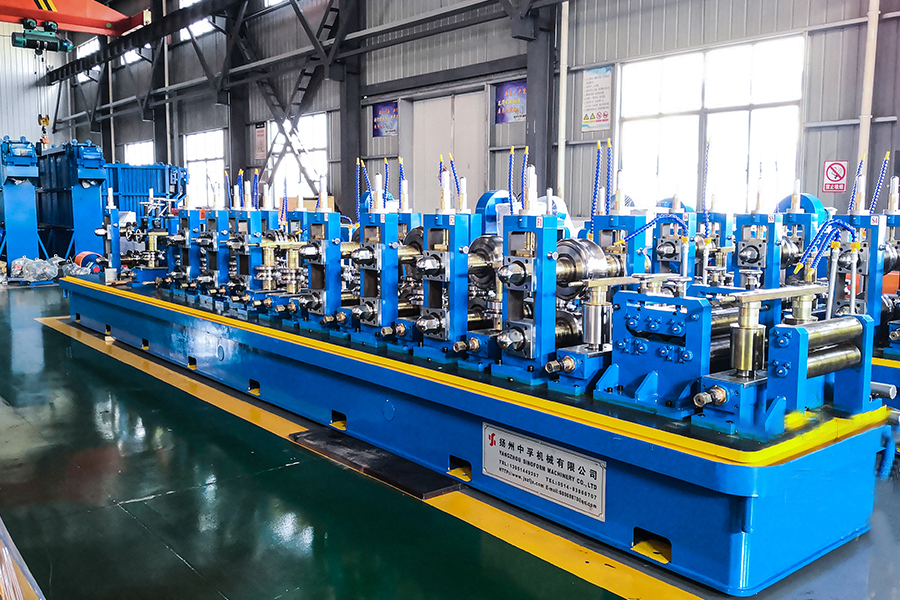

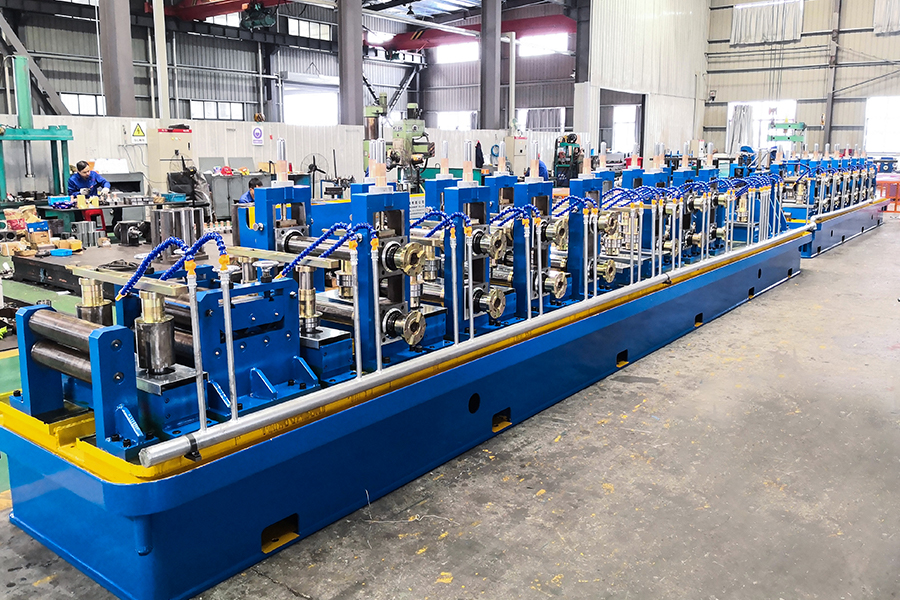

2. Forming and sizing the main machine (seven in front and five in back, split bed)

Main machine
Unit arrangement：

Forming：2  rollers leveling→V→7 rollers leveling→V→1 H→1 V→2 H→2 V→3H →3V→4 H→4 V(A)→4 V(B)→4 V(C)→5 H→5 V→6H→6 V→7 H→7V



Guiding and 2 or 3 rollers Extrude →  Scraper → Polishing→Water Cooling

Sizing：1 V→1 H→2 V→2 H→3 V→3 H→4 V→4 H→5 V→5 H→6V→6 H →speed measurement→Straightening 1→Straightening 2→ V
1）Leveling device
Function
With 7-roll leveling device to enter the forming machine steadily
Structure
1 roll Anti-jumping, 2 rolls Guiding vertical, 7 rolls leveling GCr15, surface high-frequency quenching treatment.



2）

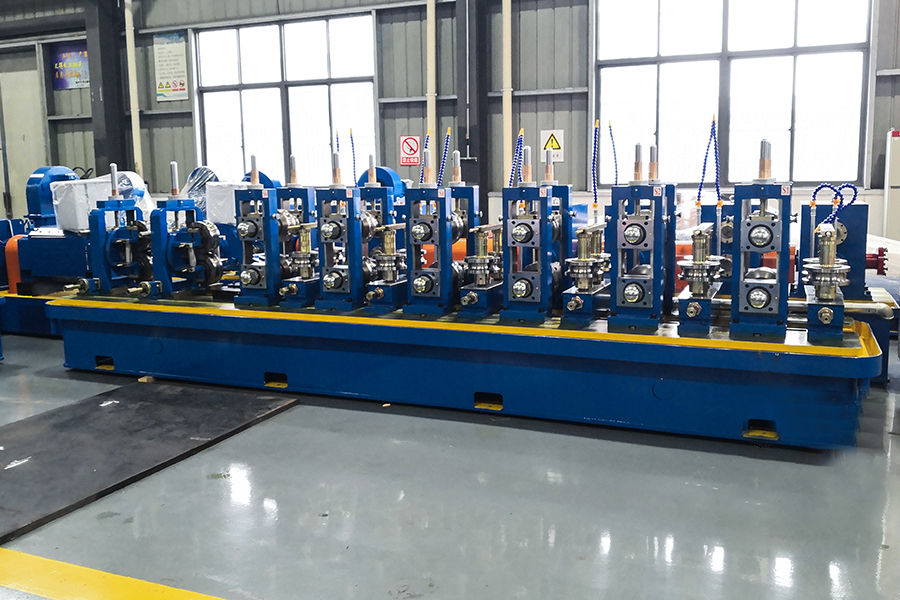

Forming machine (split-type)

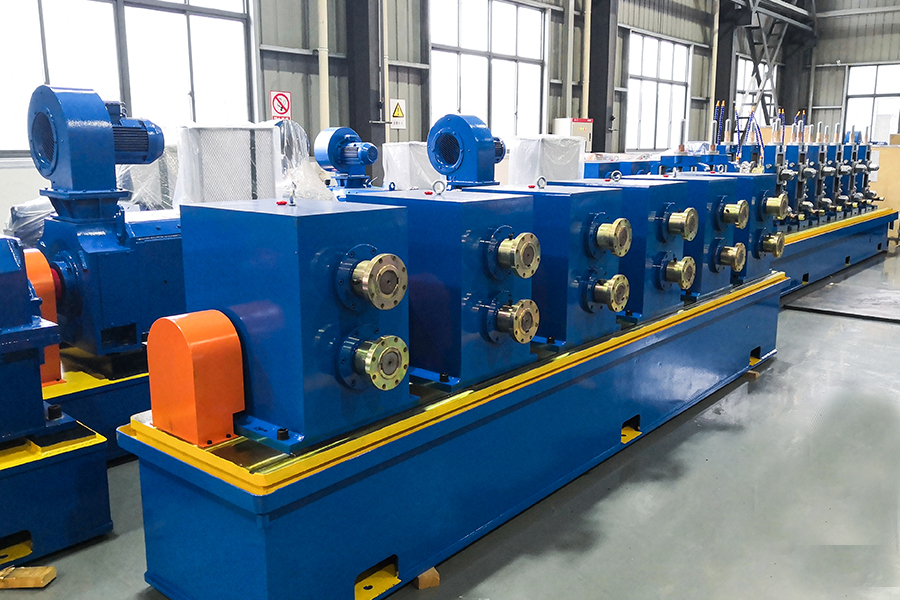

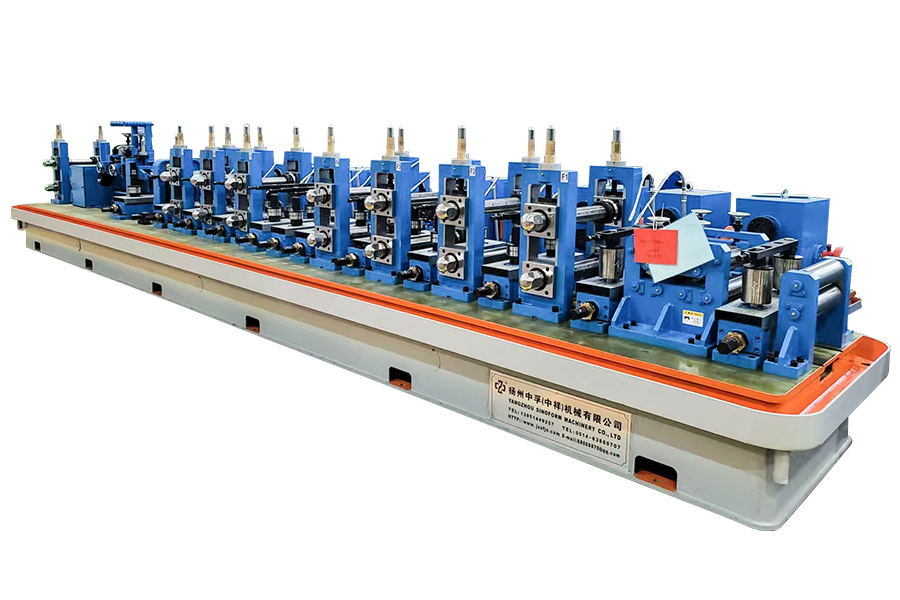

Function It can gradually squeeze steel strips into tube blanks by forming rolls, and send them to the welding machine,
Forming type

“W” forming, Double radius hole type
Horizontal-roll stands 7 stands
Vertical-roll stand 9 stands

Horizontal-roll stands

Quantity

7sets
Structure
Double column gantry frame, with the operating end frame capable of side roll replacement
Material of horizontal stands Precision-cast steel parts
Horizontal shaft diameter Φ90mm
Horizontal shaft material 42CrMo, normalized HB260~290, surface high-frequency quenching HRC50~55
Tempering Surface quenching

Vertical-roll stand

Quantity

9 stands
Structure Double pivot structure, strengthened and fastened with pull plates. The rolling mill is assembled on the roller shaft through bearings, making it easy to change the rollers.
Material of vertical stands The slider is a slot type (high precision, not easily damaged)
Vertical shaft diameter

Φ60mm
Vertical shaft material 40Cr, normalized HB260~290, surface high-frequency quenching HRC50~55
Tempering Surface quenching
Roller adjustment method
The center and position of the two roller shafts are adjusted by adjusting the screw sleeve, and the adjusting nut is a copper nut; The height of the vertical roller is fine-tuned by adjusting the nut.



gearbox
Quantity 7sets
Box material QT400
Transmission type Spiral bevel gear transmission
Spiral bevel gear material

20CrMnTi

Forging, tooth surface quenching treatment
Gear shaft material 40Cr, normalized HB260~290, surface high-frequency quenching HRC50~55
Tempering Surface quenching

3) welding section
①weld seam Guiding
Function

Guide the weld seam, adjust the welding V-angle to ensure that the weld seam can be correctly guided into the extrusion roller welding position during welding.
Structure 2-roll type, adjustable horizontally and vertically, and can rotate at a certain angle. Horizontal and vertical adjustments are made using screw rods, while frame rotation adjustments are made using worm gears.
shaft material 40Cr, normalized HB260~290, surface high-frequency quenching HRC50~55
Tempering Surface quenching
②Squeezing device (Two or three roller type SQ)
Function  The welding seam will be closed
Structure Two or three rollers type SQ, Double pivot structure, strengthened fastening with pull plate
shaft material 40Cr, normalized HB260~290, surface high-frequency quenching HRC50~55
Tempering Surface quenching
③Scraper
Function Use a scraper knife to remove the outer welding bead, welding seam will be smooth and clear.
Structure

2 sets of scrapers; The scraper can be adjusted up, down, and horizontally, and has a fast lifting function. A pallet or roller is provided below the blade holder.
④Polishing
Function Stabilizing steel pipes and flattening external burrs and uneven parts
shaft material 40Cr, normalized HB260~290, surface high-frequency quenching HRC50~55Tempering Surface quenching
4) Cooling tank
Function adopt a water tank spraying type to make sure the tube blank is cooling enough.
Structure Box-type welded structure, the upper water pipe is made into a spray shape to spray and cool the steel pipe.



5)

 Sizing machine (6 horizontal, 6 vertical + 2 sets of Turkish straightening)


Function
The function of the four-roll type pushing square device is to online deform the precision-shaped steel pipe into a square spacing pipe and roughly straighten it to achieve ideal geometric dimensions and flatness.
①Horizontal stand 6 sets, the same as forming a machine
②Vertical-roll stand 6 sets, the same as forming a machine

3）Straightening device  2 sets of Turkish head straightening(See the last Turkish - heads above)
Type of Straightening Device
Turkish - heads, 360° rotatable
Structure
2/4 - roll frame, with rolling rolls distributed on the same surface, adjustable horizontally and vertically, and capable of rotating at a certain angle. Horizontal and vertical adjustments are made using screw rods, while frame rotation adjustments are made using worm gears.
Shaft diameter Φ40mm
Shaft material 40Cr, normalized HB260~290, surface high-frequency quenching HRC50~55
Tempering Surface quenching



6) Main driven device
Drive Way
Motor→Reducer→Gear box→Universal shafts→Horizontal shafts
Main motor model, power 160KWLow speed
 DC motor，2 sets；
Reducer

ZLY224

 2 sets；
Gearbox Forming part：7 sets；  Sizing part：6 sets
Spiral umbrella gear transmission box, with high load-bearing capacity, high transmission efficiency, and long service life.

Spiral umbrella gear material: 20CrMnTi， Tempering Surface quenching。Depth of carburized layer 1.1~1.5 mm， surface quenching hardness HRC55～60。



5、Roller
Roll Material： Cr12， Heat treatment hardness: HRC58-62. Keyway wire cutting and CNC machining ensure hole shape accuracy and working surface polishing.
extrude roll Material： H13， Heat treatment hardness: HRC50-53. Keyway wire cutting, profile CNC lathe, and working surface polishing.
Roller pad Material：45# steel.



6.1、Hot cutting saw

 Customers can choose 6.1 or 6.2
Structure PLC, Ordinary saw blade cutting
（1） Maximum cutting diameter

Φ115mm（90*90）
（2） maximum cutting thickness

Δ4.5mm
（3）cutting length and precision L=3～8m,≤±3 mm
（4）drive type Pneumatic saw lifting and lowering (saw head enlarged and reinforced)
（5）size of the saw blade

Φ700mm×Φ80mm×4.0/5.0mm
（6）driving motor 30 KW AC motor
（7）cutting motor 37 KW AC motor
（8）Clamp Air Clamp



6.2、Cold cutting saw
Structure

Motion controller control, HSS high-speed steel / TCTAlloy saw blade cutting
（1）、Maximum cutting diameter

Φ115mm
（2）、maximum cutting thickness

Δ4.5mm
（3）、 cutting length and precision L=4～8m,≤±2 mm
（4）、drive type Servo motor/ball screw/linear guide
（5）、size of saw blade

Φ560mm-HSS

 high-speed steel
（6）、driving motor 15 KW Yaskawa Servo motor
（7）、cutting motor 18.5 KW AC motor
（8）Feeding motor 2.9 KW Yaskawa Servo motor
（9）、speed of cutting 20-70 m/min



7、conveyor table
Function
The function is to accelerate the separation of steel pipes cut to fixed lengths and transport them to the packaging area
Transmission motor 3 KW
AC motor with variable frequency speed regulation
Quantity of feeding rollers 12 sets
Length 12 M



8、300KW High-frequency welding machine
Introduction The entire equipment is controlled by a PLC system to achieve comprehensive interlocking control and fault diagnosis functions, and the operating status of the equipment is monitored through an LCD screen
Composition RECTIFIER CABINET
INVERTER CABINET
COOLING DEVICE
OPERATING TABLE
TRANSFORMER
DC SPEED ADJUSTOR




9、Zinc spraying machine (customer option)
Overview The arc burns at both ends of the wire as a heat source, causing the wire to melt. At the same time, compressed air atomizes the melted wire into gas droplets, which are then sprayed at high speed onto the surface of the pre-treated workpiece. Form a complete coating.
